Vertical Type Clamping Standard Injection Molding Machine
1. Description:
A conventional servo system, vertical injection, and vertical clamping
clamping force:40-80 tons； Injection volume: 0-30 g； injection speed: 500 mm/s
LIZHU developed a high-speed injection system that can work with LCP, PA6T, PA4T, and other materials, making it perfect for precision thin-wall electronic devices. The use of a fully closed-loop system improves the stability of injection repetition accuracy.
Insert products are appropriate for high-precision items, electronic components, mobile phone connectors, and electronic sensors.
Products include a single sliding table, a rotating table, an energy-saving system, and an electric injection system.
2. Sepcifications:
| Item | Unit | LZ-D |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø28 | Ø30 |
| Injection Pressure | Kg/cm2 | 2216 | 1892 | 1135 |
| Theoretical Shot Volume | cm3 | 214 | 264 | 319 |
| Shot Weight(PS) | g | 174 | 212 | 239 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 163 | 214 | 247 |
| Screw Stroke | mm | 145 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 310 |
| Clamping Force | Clamping Force | tons | 60 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1250 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.01 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 77 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 153 |
| Cold Water Volume | Liters/min | 166 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 17 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 2.4 |
| Machine Size | m | --- |
3. Machine Features:
1) An optional low-energy servo motor.
2) Automatic flaw detection; simple and rapid maintenance
3) Electronic control and hydraulic systems rely on name-brand components that are quiet, precise, and long-lasting.

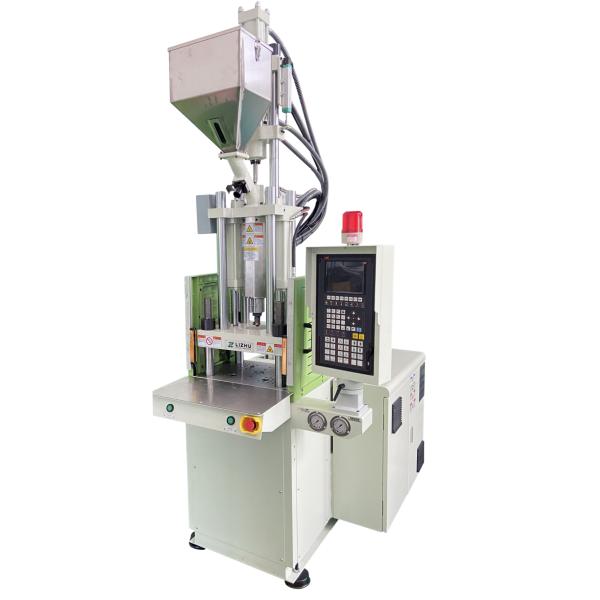

4. Pictures:
5. FAQ:
1)Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2)Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3)How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4)Do you accept my own design?
We can provide OEM/ODM service.
5.When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
