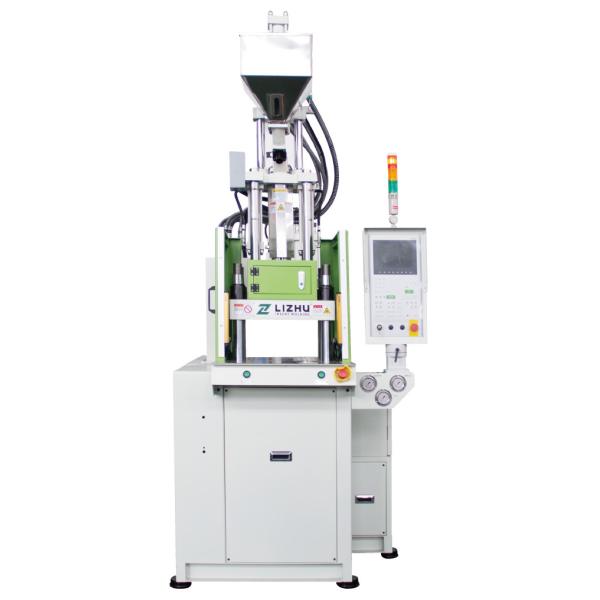

Precision vertical injection molding machine
1. Description:
Vertical injection, vertical clamping, and a typical servo system
40-80 tons of clamping force Volume of injection: 0–30 grams 500 mm/s for injection speed.
Design features: LIZHU created a high-speed injection system that works with LCP, PA6T, PA4T, and other materials, making it ideal for precision thin-wall electronic devices. The design of a fully closed-loop system improves injection repetition accuracy's stability.
High-precision items, electronic components, mobile phone connectors, and electronic sensors are suitable for insert products.
Single sliding table, rotary table, energy-saving system, electric injection system are available as product choices.
2. Sepcifications:
| Item | Unit | LZ-D |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø28 | Ø30 |
| Injection Pressure | Kg/cm2 | 2216 | 1892 | 1135 |
| Theoretical Shot Volume | cm3 | 214 | 264 | 319 |
| Shot Weight(PS) | g | 174 | 212 | 239 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 163 | 214 | 247 |
| Screw Stroke | mm | 145 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 310 |
| Clamping Force | Clamping Force | tons | 30 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1250 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.01 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 77 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 153 |
| Cold Water Volume | Liters/min | 166 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 17 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 2.4 |
| Machine Size | m | --- |
3. Machine Features:
1) An optional energy-saving servo motor.
2) Automatic defect detection; quick and simple maintenance.
3) Electronic control and hydraulic use brand-name parts that are quiet, precise, and long-lasting.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
