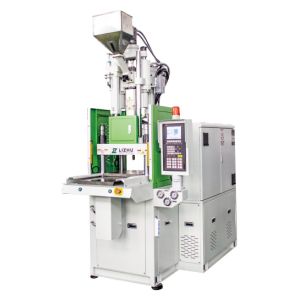

Fully Automatic Vertical Precision Injection Molding Machine
1. Description:
The hydraulic charging motor on the injection unite can turn 180 degrees from its initial position, making replacing the material tube easier.
When the hydraulic motor is charging, the injection union is stabilized due to the powerful injection structure.
A slide table or revolving table is a solution for improved safety and productivity.
The original Platen Lift System design reduces clamping time. It lessens the strain on the toggle, allowing it to last longer.
Unlike hydraulic clamping, our toggle clamping technique allows for high-speed and smooth clamping while also taking into account the needs of various molds.
A dual injection cylinders system allows for high-pressure and high-speed injection.
2. Sepcifications:
| Item | Unit | LZ-Standard |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø30 | Ø35 |
| Injection Pressure | Kg/cm2 | 2216 | 1892 | 1145 |
| Theoretical Shot Volume | cm3 | 213 | 264 | 319 |
| Shot Weight(PS) | g | 174 | 212 | 239 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 161 | 212 | 242 |
| Screw Stroke | mm | 145 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 335 |
| Clamping Force | Clamping Force | tons | 45 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 585*1270 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 590*350 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 153 |
| Cold Water Volume | Liters/min | 166 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 15 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 2.4 |
| Machine Size | m | --- |
3. Machine Features:
1) The clamping unit is designed with a screw rod and nuts; reducing the clamping cylinder stroke improves performance.
2) High-quality computer control system with high precision injection pressure and rapid injection reaction. The quality of high-precision embedded injection molding products is more stable.
3) Applies to all insert components.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
