1. Description:
The advantages of the molding method include fast production speed, high efficiency, automatic operation, a wide variety of patterns, shapes ranging from simple to complex, sizes ranging from large to small, accurate product size, easy product replacement, and can be made. Injection molding is appropriate for mass production and complex conditions for parts with complex shapes.
2. Sepcifications:
| Type | Unit | LZ-1600/LZ-1600D/LZ-1600-2R |
| Injection unit | Screw dia. | mm | 50 | 55 | 60 |
| Injection pressure | kg/cm2 | 2150 | 1777 | 1493 |
| Theoretical shot volume | cm3 | 392 | 475 | 565 |
| Shot weight | g | 350 | 420 | 500 |
| oz | 12.2 | 14.8 | 17.6 |
| Injection rate | cm3/sec | 235 | 284 | 339 |
| Screw stroke | mm | 200 |
| Screw rate | rpm | 0-350 |
| Injection speed | mm/s | 120 |
| Temperature section(zone) | - | 5 |
| Clamping unit | Clamping force | tons | 160 |
| Opening force | tons | 20 |
| Fixed table | Table size | mm | 1060*800 |
| Tie bar | mm | 760*500 |
| Single sliding table size | mm | 750*750 |
| Rotary table | Table size | mm | 1600 |
| Max mold size | mm | 750*600 |
| Min. mold thickness | mm | 350 |
| Opening stroke | mm | 350 |
| Opening daylight | mm | 700 |
| Max. mold weight | kg | 1500 |
| Electric unit | Ejector force | tons | 6 |
| Ejector stroke | mm | 50 | 100 |
| Max. pressure | kg/cm2 | 140 |
| Pump output volume | liters/min | 180 |
| Oil tank volume | liters | 480(Fixed table)/560(sliding.rotary) |
| Cooling water volume | liters/hr | 80 |
| Servo Motor | kw | 37 | 48 |
| Heater | kw | 16 |
| Total wattage | kw | 53 | 53 | 64 |
| Others | Machine weight | tons | 7.9 | 8.5 | 11 |
| Machine size | m | L2.9*W1.8*H4.8 | L3.3*W1.8*H4.9 | L3.4*W2.4*H4.9 |
3. Machine Features:
1. Insert molding is simple to implement. The insert is simple to place and place because the face of the mold faces above. Completely automatic insert molding can be achieved by combining the belt conveyor device and the manipulator and using a model with the lower template fixed and the upper template portable.
2. The weight of the mold is supported by the vertical template to open and close up and down, and the miracle that the template cannot be opened and closed due to the gravity of the mold, such as a vertical machine, will not suffice. It contributes to the delicate nature of ministry and shapes for continuity.

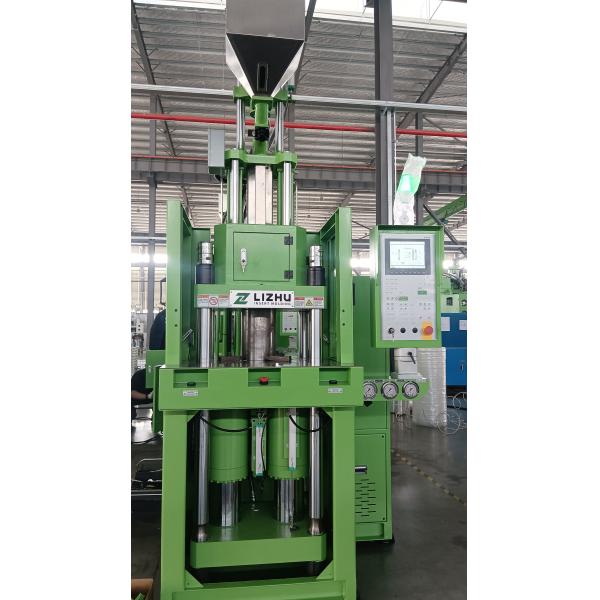

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
