Three Tie Bars Vertical Injection Molding Machine With Rotary Table
Injection Moulding Machine Energy - Saving Servo System
1. Description:
Clamping time is reduced by the rotary table design. The clamping unit of this Vertical Injection Machine ues screw rod with nuts design, reduce clamping cylinder stroke, will improve performance.
Working height is lower than traditional design. Apply to all kinds of insert components.
If you want to increase efficiency and safety, you can use a slide table or rotating table.
2. Sepcifications:
| Item | Unit | Model |
| 60T | 80T-100T-120T | 160T-200T-240T |
Injection Unit | Screw Dia. | mm | 30 | 035 | 840 | 035 | 640 | 645 | 50 | 855 | 060 |
| Injection Pressure | Kg/cm² | 2645 | 1945 | 1485 | 2170 | 1660 | 1310 | 2150 | 1780 | 1490 |
| Theoretical Shot Volume | cm³ | 99 | 135 | 175 | 144 | 188 | 238 | 392 | 475 | 565 |
| Shot Weight (PS) | g OZ | 87 | 119 | 155 | 127 | 166 | 210 | 346 | 420 | 500 |
| 3.1 | 4.2 | 5.5 | 4.5 | 5.9 | 7.4 | 12.2 | 14.8 | 17.6 |
| Injection Rate | cm3/sec | 84 | 1.15 | 186 | 115 | 150 | 190 | 196 | 237 | 282 |
| Screw Stroke | mm | 140 | 150 | 200 |
| Screw Rate | rpm | 175 | 0-300 | 0-400 |
| Injection Speed | mm/s | 120 | 120 | 100 |
| Stroke of Nozzle | mm | 280 | 300 | 450 |
| Nozzle contact force | Tons | 4.8 | 5.3 | 7.1 |
| No. of temp. control | | 5 | 5 | 5 |
| Hopper capacity | L | 15 | 15 | 15 |
Clamping Unit | Clamping Force | tons | 60 | 80 | 160 |
| Opening Force | tons | 8.5 | 14 | 20.9 |
| Table Size | mm | 870*550 | 1150*755 | 1440*904 |
| Rotary Table Dia. | mm | ∅1000 | ∅1300 | ∅1600 |
| Tie Bar | mm | 680*317.5 | 920*418 | 1120*530 |
| Max Mold Size | mm | 500*350 | 710*435 | 750*600 |
| Min. Mold Thickness | mm | 200+(50+50) | 300+(50+50) | 300+(50+50) |
| Opening Stroke | mm | 240 | 288 | 364 |
| Max. Opening Stroke | mm | 440+(50+50) | 588+(50+50) | 664+(50+50) |
| Position tolerance | mm | ±0.2 | ±0.2 | ±0.2 |
Others | Machine Weight | tons | 4 | 6.5 | 11 |
| Machine Size | m | 1.4*2.6*2.98 | 2.87*1.87*3.58 | 3.4*2.4*4.6 |
3. Machine Features:
1) Vertical injection combined with vertical clamping.
2) The rotary table oscillates 180 degrees and rotates back and forth for easy loading and picking up of finished pieces to increase production.
3) A rotating table with a pin for positioning allows for automated mold alignment.

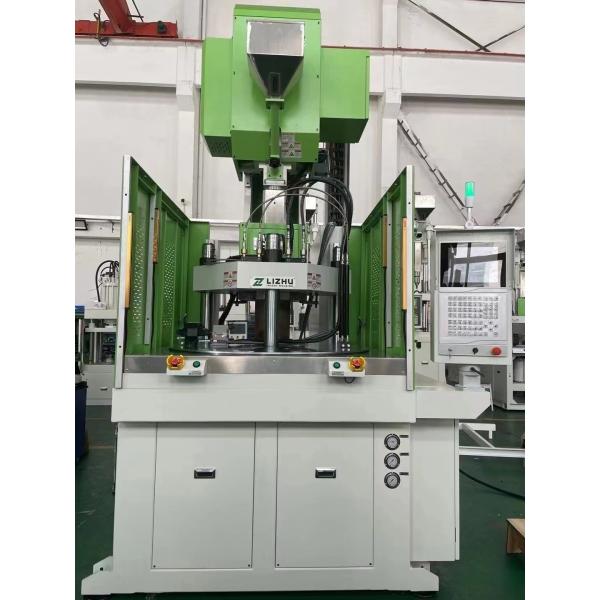

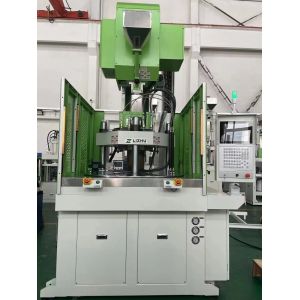

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
