Vertical Plastic Injection Moulding Machine Reliable Quality
1. Description:
- Clamping time is reduced by the unique design of the Platen Lift System. As a result, the toggle works less and lasts longer.
- Our toggle clamping system, in contrast to hydraulic clamping, permits smooth, high-speed clamping while requiring low-pressure clamping.
- Twin injection cylinders enable both high-speed and high-pressure injection.
- The hydraulic charging motor can rotate 180 degrees from its starting position due to the injection unite's unique design, making
- material tube replacement simple.
- When the hydraulic motor is charging, the stable injection union is maintained by the robust injection architecture.
- For increased safety and efficiency, a rotating or sliding table is an option.
2. Sepcifications:
| Item | Unit | LZ-2R |
| Injection Unit | Screw Diameter | mm | Ø35 | Ø40 | Ø45 |
| Injection Pressure | Kg/cm2 | 2200 | 1835 | 1208 |
| Theoretical Shot Volume | cm3 | 214 | 251 | 312 |
| Shot Weight(PS) | g | 178 | 219 | 236 |
| oz | 6.2 | 7.5 | 9.3 |
| Injection Rate | cm3/sec | 170 | 222 | 265 |
| Screw Stroke | mm | 160 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 134 |
| Nozzle Stroke | mm | 360 |
| Clamping Force | Clamping Force | tons | 200 |
| Opening Force | tons | 20 |
| Sliding Plate Size | mm | 570*560 |
| Plate Size | mm | 585*1130 |
| Rotary Table Diameter | mm | Ø1300 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 560*345 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 245 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 8 |
| Ejector Diameter | mm | 20 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 145 |
| Cold Water Volume | Liters/min | 170 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 10 |
| Total Wattage | kw | 35 |
| Others | Machine Weight | tons | 7.8 |
| Machine Size | m | ** |
3. Machine Features:
- Vertical injection and vertical clamping.
- The 180-degree rotation of the rotary table increases productivity.
- For accurate mold alignment and automation, it is recommended to use a rotary table with a pin in the right place.

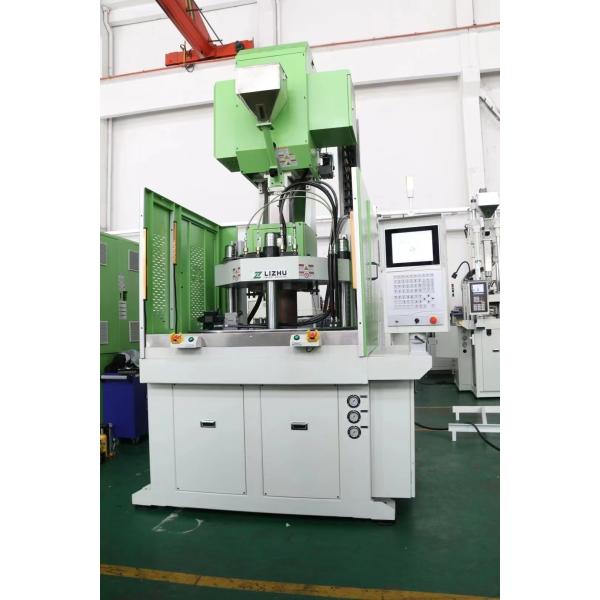

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
